Alumina Crucible vs Alumina Boat: Key Differences

Why Your Sintering Results Depend on the Vessel You Choose

Have you ever pulled a crucible out of the furnace only to find it cracked, or worse, your ceramic workpiece contaminated with a grayish residue? We’ve all been there. The frustration of a ruined batch, the wasted hours, the cost of re-running the cycle. It’s a painful experience that makes you question every variable in your process. But the truth is, the vessel you choose for sintering is not just a container—it’s an active participant in the reaction. And when it comes to high-purity alumina crucibles for sintering ceramics, the differences between a crucible and a boat, or between alumina and other materials, can make or break your results.

We’ve spent decades in the firing room, and we’ve learned that the smallest details—purity, wall thickness, density—dictate the outcome. This article is about those details. No fluff, no theory without practice. Just the logic that has guided our own choices and can help you avoid the mistakes we made.

The Crucible vs. Boat Debate: More Than Shape

At first glance, an alumina crucible and an alumina boat seem interchangeable. Both are made from high-purity alumina, both can withstand extreme temperatures, and both are used for firing ceramics. But the application dictates the geometry. A boat is shallow, open, and designed for maximum surface exposure—ideal for calcining powders or sintering thin sheets where gas flow matters. A crucible, on the other hand, is deep, with walls that contain the charge and protect it from direct furnace atmosphere. For sintering bulk ceramic parts, especially those sensitive to oxygen or binder burnout, the crucible’s enclosed geometry provides a more controlled environment.

We’ve seen operators use boats for everything, then wonder why their dense alumina parts developed a discolored outer layer. The boat’s open design allows furnace gases to circulate over the parts, which can cause oxidation or carbon pick-up. A crucible with a tight-fitting lid creates a micro-atmosphere that retains volatiles and stabilizes the firing conditions. That’s not a minor advantage—it’s the difference between a consistent white sintered body and a batch of rejects.

The Purity Imperative: Why 99.7% Al2O3 Is Non-Negotiable

When we talk about a high purity alumina crucible for sintering ceramics, the number that matters most is the alumina content. A crucible with 99.7% or higher Al2O3 is not just a marketing label—it’s a guarantee that the small fraction of impurities (typically SiO2, CaO, MgO) will not migrate into your ceramic powder at sintering temperatures. At 1600°C, even a 0.5% silica impurity can react with a zirconia workpiece, forming a low-melting eutectic that ruins the grain structure. We’ve seen it happen. The logic is simple: the purer the crucible, the fewer the unwanted reactions.

But purity alone isn’t enough. The sintering temperature of the crucible itself must be high enough to achieve full densification. A crucible fired at 1700°C will have lower porosity and better chemical resistance than one fired at 1550°C. That’s why we always specify the service temperature range: up to 1750°C for standard 99.7% alumina, and 1800°C for 99.9% grades. Crucibles that claim high purity but are not fully dense will shed particles into your batch. That’s contamination you can’t see until it’s too late.

Thermal Shock Resistance: The Hidden Variable

You might have the purest crucible in the world, but if it cracks on the second cycle, it’s useless. Thermal shock resistance is a function of wall thickness, grain size, and porosity. A crucible with a uniform wall thickness of 3 mm will survive faster ramping rates than one with a 5 mm wall, because the thermal gradient across the wall is smaller. But too thin a wall reduces mechanical strength—a trade-off we’ve learned to balance.

We recommend a wall thickness of 3 to 5 mm for most sintering applications, with a gradual taper from bottom to top. This design allows the crucible to expand evenly during heating and contract without stress during cooling. The density of the crucible also plays a role: a fully dense crucible (99% theoretical density) conducts heat more uniformly than a porous one, reducing local hot spots that cause cracking. We’ve seen porous crucibles fail after three cycles because the pores trapped moisture that turned to steam and fractured the wall.

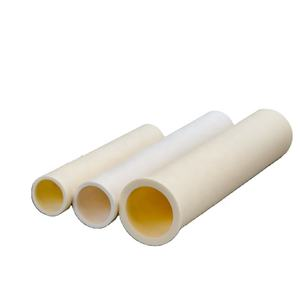

Crucible Design for Specific Ceramic Systems

We’ve seen labs use the same crucible for alumina and zirconia, then wonder why the zirconia parts turned gray. The answer is simple: residual alumina dust from the previous run had reacted with the zirconia at high temperature. The solution is a dedicated crucible per material, or at least a rigorous cleaning protocol using a dilute acid wash followed by a high-temperature burn-out cycle.

Ramping Rates, Dwell Times, and Cooling: The Art of Saving Your Crucible

We’ve all been tempted to push the furnace faster to save time. But a crucible’s lifespan is directly tied to the thermal cycle. For a standard 3 mm thick crucible, we recommend a ramp rate of 5°C/min up to 1000°C, then 3°C/min to the sintering temperature. Dwell time should be long enough to complete the reaction but not so long that the crucible’s grain structure begins to grow—typically 1 to 2 hours at peak temperature. Cooling is the most critical phase: we always cool at 5°C/min down to 800°C, then natural furnace cooling. Rapid cooling from 1600°C to room temperature will crack even the best crucible.

We’ve seen operators open the furnace door at 1000°C to check on the parts. That’s a sure way to shorten crucible life. The thermal shock from the sudden influx of cold air can create microcracks that grow with each cycle. Instead, we let the crucible cool naturally to below 200°C before opening. That patience pays off in extended crucible life and consistent results.

Comparing Crucible Materials: Why Alumina Wins for Ceramic Sintering

Quartz crucibles are cheap and transparent, but they soften at 1650°C and react with many ceramic powders. Graphite crucibles are excellent for vacuum sintering but oxidize rapidly in air above 600°C, requiring a protective atmosphere. Mullite crucibles are more thermal shock resistant than alumina but have lower purity (typically 75% Al2O3), which can contaminate high-purity ceramics. For the vast majority of sintering applications in air at temperatures up to 1750°C, a high-purity alumina crucible is the optimal choice. It combines chemical inertness, mechanical strength, and thermal stability in a way that no other material can match.

We’ve tested all of them. Quartz left a silica glaze on our alumina parts. Graphite turned our white zirconia gray. Mullite introduced iron impurities that weakened the final ceramic. Only high-purity alumina gave us the clean, repeatable results we needed. The logic is clear: if you want to avoid contamination, choose the crucible that is chemically identical to your workpiece—or as close as possible.

Sourcing the Right Crucible: Dimensions, Tolerance, and Surface Finish

When you order a high purity alumina crucible for sintering ceramics, the specifications matter more than you might think. A crucible that is 1 mm larger in diameter than your furnace’s hot zone can cause uneven heating because it sits too close to the elements. The wall thickness tolerance should be ±0.5 mm to ensure consistent thermal behavior. The inner surface finish should be smooth, not polished, because a slight roughness helps the crucible release the parts after sintering—a polished surface can cause sticking. We always specify a surface finish of Ra 0.8 µm or better.

We also recommend ordering a crucible with a matching lid, even if you don’t plan to use it every time. The lid allows you to control the atmosphere inside the crucible for specific reactions. And always ask for a certificate of analysis that confirms the alumina content and density. A supplier who cannot provide that data is not worth your trust.

When you need a crucible that delivers repeatable results, cycle after cycle, consider our high purity alumina crucibles. They are engineered for the demands of sintering ceramics—with controlled purity, precise dimensions, and a surface finish that minimizes sticking. We’ve been using them for years, and we stand by the consistency they bring to every firing.
